Aug. 26, 2026
Shrink sleeve labels are widely used on beverage bottles, food containers, cosmetics, household products and other packaging because they can conform closely to complex container shapes while providing almost 360-degree graphics.
But how are shrink sleeves actually made?
The complete process involves two major stages: first, producing a heat shrink label film with controlled shrink properties; second, converting that film through printing, slitting, seaming and finishing into a sleeve that can be applied to a container.
For packaging buyers, understanding this process makes it easier to choose the right shrink sleeve film, shrink ratio, thickness and material for a specific bottle or packaging line.
The process starts with selecting a polymer suitable for the required container shape, shrink percentage and application conditions.
Common materials include:
PETG shrink film is widely used for full-body shrink sleeve labels, especially for bottles and containers with pronounced curves. This type of label film is also one of our main products and has a significant advantage.
It is commonly selected when buyers require:
● High shrink capability
● Good clarity
● Strong print appearance
● Good conformity around complex container shapes
● Full-body bottle decoration
High-shrink PET-type films can provide substantially higher transverse shrinkage than lower-shrink materials, making them suitable for containers with significant differences between their widest and narrowest sections.
PVC shrink film has been widely used in shrink sleeve applications because of its processing characteristics and relatively broad shrink window.
It can be used for:
● Bottle labels
● Tamper-evident bands
● Container decoration
● General shrink sleeve applications
The appropriate grade should be selected according to shrink ratio, labeling equipment and sustainability requirements.
OPS, or oriented polystyrene shrink film, can be selected when lower shrink force or particular shrink behavior is required.
This can be useful for containers that may deform under excessive shrink force.
Depending on the packaging system, converters may also use polyolefin-based films, recyclable copolyester films, PCR-containing films and other specialty shrink materials. Commercial shrink sleeve suppliers currently offer PETG, PVC, OPS, polyolefin and newer recyclable film options for different packaging requirements.
The best material is therefore not determined by price alone.
A buyer should consider:
● Container material
● Container geometry
● Maximum required shrink percentage
● Shrink force
● Steam or hot-air tunnel
● Printing method
● Recycling requirements
● Storage and transportation conditions
After the resin formulation is prepared, the polymer is melted and formed into a continuous film.
Depending on the film structure and polymer system, film can be produced using cast or other extrusion processes.
At this stage, however, the plastic film does not yet have all of the controlled shrink characteristics required for a shrink sleeve.
The critical next stage is orientation.
This is one of the most important steps in manufacturing shrink sleeve film.
The extruded film is heated and stretched under controlled conditions. Stretching aligns polymer chains in a specific direction.
For shrink sleeve labels, the film is commonly designed to shrink mainly in the transverse direction, or TD, which means across the width of the web.
When the oriented film is later heated in a shrink tunnel, the polymer structure tends to move back toward its original state, causing the sleeve to contract around the container.
Technical literature on shrink label films describes shrink sleeve face films as commonly being oriented in the transverse direction so that they shrink primarily around the circumference of the container.
This is why controlling orientation during shrink film manufacturing is so important.
Too little or too much orientation can affect:
● Final shrink percentage
● Shrink curve
● Dimensional stability
● Label distortion
● Wrinkles
● Container fit
After orientation, the film is cooled to preserve the molecular orientation created during stretching.
The result is a thin, transparent heat shrink label film that remains relatively stable during storage but contracts when exposed to the required temperature.
During this stage, the manufacturer must carefully control film properties such as:
● Thickness
● Width
● Shrinkage percentage
● Shrinkage in TD and MD
● Tensile properties
● Surface quality
● Haze and clarity
● Gauge uniformity
Consistent film behavior is especially important for high-speed sleeve printing and automatic labeling lines.
The finished shrink film is wound into master rolls.
Before shipment to a label printer or sleeve converter, quality checks may include:
● Film thickness measurement
● Width inspection
● TD shrink testing
● MD shrink testing
● Shrink curve evaluation
● Surface inspection
● Roll appearance
● Corona treatment or surface energy inspection where required
● Winding tension inspection
For a shrink sleeve film manufacturer, these properties are critical because even a visually acceptable film may perform poorly if its shrink curve or dimensional stability is inconsistent.
Once the film reaches a shrink sleeve converter, the next stage is artwork preparation.
Shrink sleeve graphics cannot always be printed exactly as they appear on the final container.
Why?
Because different parts of a sleeve shrink by different amounts.
For example, the film around a narrow bottle neck may shrink significantly more than film around the main body.
The artwork therefore needs to be pre-distorted so that graphics appear correct after shrinking.
A grid test or container test can be used to determine how much each section of the sleeve will distort. Professional converters then adjust text, logos and graphics before printing. Distortion management is considered one of the most important prepress issues in shrink sleeve production.
This is especially important for:
● Highly contoured bottles
● Narrow necks
● Wide shoulders
● Irregular containers
● Full-body shrink sleeves
After artwork approval, the shrink film is printed.
Common printing technologies include:
● Rotogravure printing
● Flexographic printing
● Digital printing
The appropriate process depends on run length, graphics requirements, number of colors and order quantity.
Shrink sleeve films are often reverse printed.
This means the ink is printed on the inside surface of the transparent film rather than on the outer surface.
After the sleeve is applied, consumers view the graphics through the film.
Reverse printing helps protect the ink from:
● Scratching
● Moisture
● Abrasion
● Transportation damage
Commercial shrink sleeve manufacturing commonly uses flexographic, gravure or digital printing, followed by slitting and seaming.
The printed master roll is normally wider than the finished sleeve.
After printing, the film is slit into narrower rolls according to the required layflat width.
Layflat width is an important specification in shrink sleeve manufacturing because it determines the circumference of the tubular sleeve before shrinking.
The correct layflat depends on:
● Maximum container circumference
● Film shrink characteristics
● Required oversize
● Labeling machine requirements
Poor layflat control can result in sleeves that are too tight to apply or too loose to shrink correctly.
The slit film is then converted from a flat web into a continuous tube.
The two edges of the film are brought together and bonded to form a seam.
A common commercial method is solvent seaming, in which a controlled amount of solvent is applied to create a bond between the overlapping film edges. Other seaming technologies may also be used depending on film construction and application.
Seam quality is critical.
A poor seam can cause:
● Sleeve splitting
● Uneven shrinking
● Application failure
● Visible seam distortion
● Problems on automatic sleeving machines
After seaming, the continuous tube can be supplied in different formats.
The finished tubular material is rewound into rolls for automatic sleeve applicators.
This format is suitable for high-volume production lines.
The tube can also be cut into individual pieces, sometimes called cut bands.
These may be used for:
● Manual application
● Lower production volumes
● Tamper-evident neck bands
● Special packaging
Commercial converters typically finish seamed rolls either as machine-application rolls or individual cut sleeves.

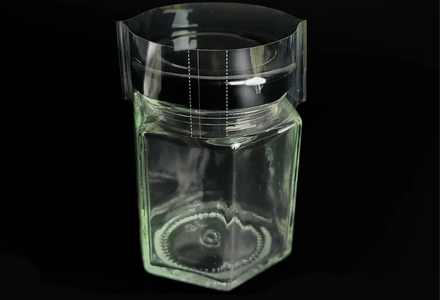

At the packaging plant, the sleeve is placed over the bottle or container.
For automated production, a sleeve applicator cuts individual sleeves from the roll and positions them around each container.
At this stage, the sleeve is still loose.
The container then moves into a shrink tunnel.
The final shape is created by heat.
Common shrink systems include:
● Steam tunnels
● Hot-air tunnels
● Infrared-assisted systems
● Hybrid shrink tunnels
When heated, the oriented film contracts primarily around the circumference of the container.
The sleeve gradually conforms to:
● Bottle walls
● Curved shoulders
● Neck areas
● Recessed sections
● Other container contours
The required shrink behavior depends on container geometry. Industry guidance identifies container shape, container material and shrink tunnel type as three major factors in selecting shrink sleeve film properties.
The overall process can be summarized as:
Resin Selection → Film Extrusion → Film Orientation → Cooling → Winding → Quality Inspection → Artwork Distortion → Printing → Slitting → Seaming → Finishing → Sleeve Application → Heat Shrinking
For packaging buyers, the most important point is that sleeve quality does not depend only on printing.
The performance of the original shrink sleeve film has a major influence on the final result.
A reliable shrink label film should provide more than a high maximum shrink percentage.
Buyers should evaluate:
The film should shrink predictably as temperature increases.
This helps the converter and packaging line control sleeve appearance in the shrink tunnel.
Shrink sleeves are generally designed to shrink primarily across the transverse direction.
Excessive machine-direction shrinkage can change label height or create positioning problems.
Consistent gauge improves:
● Printing stability
● Slitting accuracy
● Seaming
● Automatic application
● Shrinking consistency
The film surface must be compatible with the selected printing and ink system.
Higher shrink is not automatically better.
Thin-wall PET bottles, soft containers and rigid containers may require different shrink forces.
Shrink film is heat sensitive and should be stored under suitable conditions. Film suppliers commonly specify controlled storage temperatures to minimize premature shrinkage or dimensional change.
| Film | Main Advantage | Common Consideration |
|---|---|---|
| PETG Shrink Film | High shrink capability and good clarity | Useful for complex container shapes |
| PVC Shrink Film | Established processing performance | Sustainability and market requirements should be considered |
| OPS Shrink Film | Lower shrink force | Useful for certain lightweight containers |
| Specialty / Polyolefin Film | Can support specific recycling or performance goals | Must match container and shrink system |
There is no single material that is best for every project.
A shrink sleeve film supplier should evaluate the entire packaging system before recommending the film.
A successful shrink sleeve begins long before the label enters the shrink tunnel.
Film composition, orientation, shrink curve, gauge consistency and printability all influence how the finished sleeve performs.
For brand owners, label converters and packaging manufacturers, working with an experienced shrink sleeve film manufacturer can help reduce problems such as wrinkles, excessive distortion, loose sleeves and inconsistent shrink performance.
When requesting a recommendation, send your container drawing, required shrink percentage, film thickness, printing process and shrink tunnel conditions. The correct PETG shrink film, CPET or specialty shrink label film can then be selected according to the actual packaging application.
