Steam Tunnel vs. Hot Air Tunnel for PETG Shrink Sleeves

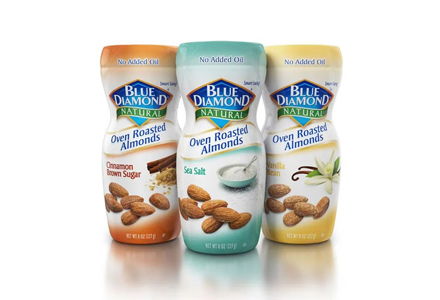

PETG shrink sleeves are widely used for beverage bottles, cosmetics, household products, food packaging and other containers that require high-quality 360-degree decoration. However, selecting the right PETG shrink sleeve film is only part of the process. The type of shrink tunnel also has a direct impact on the final appearance of the sleeve.

Two common options are steam shrink tunnels and hot air shrink tunnels.

Both can process PETG shrink sleeves, but they behave differently during shrinking. Container shape, sleeve shrinkage, production speed and appearance requirements should all be considered before choosing between them.

What Is a Steam Shrink Tunnel?

A steam tunnel uses controlled steam to heat the PETG shrink sleeve as the container moves through the tunnel.

Because steam surrounds the sleeve and transfers heat efficiently, it can provide relatively uniform heating over curved and irregular surfaces. This makes steam tunnels particularly useful for full-body shrink sleeves and containers with complicated profiles.

Commercial steam tunnels normally provide multiple adjustable steam zones or baffles so heat can be directed to different areas of the package.

Main Advantages of Steam Tunnels

• Uniform heat distribution

• Good control around curves and contours

• Suitable for high-shrink PETG film

• Reduced risk of uneven shrinkage

• Good appearance on full-body labels

• Suitable for complex-shaped bottles

Steam tunnels are commonly considered when the sleeve must closely follow shoulders, waists, curves or other dimensional changes in the container.

What Is a Hot Air Shrink Tunnel?

A hot air tunnel, also called a dry heat or convection shrink tunnel, circulates heated air around the container.

Operators can adjust parameters such as temperature, air velocity and airflow direction to control how the sleeve shrinks.

Modern convection tunnels may use multiple heating zones and adjustable air baffles, allowing processors to control shrink performance for applications ranging from tamper-evident bands to full-body high-shrink labels.

Main Advantages of Hot Air Tunnels

• No steam or water supply required

• Relatively simple production-line installation

• Adjustable temperature and airflow

• Suitable for many standard bottle shapes

• Good option where moisture should be avoided

• Can process PETG and other compatible shrink films

For relatively simple containers, a correctly configured hot air tunnel can provide very good PETG sleeve results.

Steam Tunnel vs. Hot Air Tunnel: Key Differences

Neither technology is automatically better for every packaging line.

The correct choice depends on the interaction between the PETG shrink film, bottle geometry and tunnel conditions.

Why Steam Tunnels Are Often Used for PETG Shrink Sleeves

One of the main advantages of PETG shrink film is its ability to achieve relatively high shrinkage and conform to complicated package shapes.

This is particularly useful for:

• contoured beverage bottles;

• cosmetic and personal-care bottles;

• household cleaning containers;

• bottles with narrow necks;

• containers with pronounced shoulders;

• irregular or asymmetrical packages.

These applications also create a challenge: different parts of the sleeve may need to shrink at different rates.

A bottle shoulder, for example, may require considerably more shrinkage than the straight body section.

Steam provides surrounding heat that can help the PETG sleeve shrink progressively around these transitions. This is one reason steam tunnels are commonly considered for demanding full-body shrink sleeve applications.

When Is a Hot Air Tunnel a Better Choice?

A hot air tunnel may be more practical when the container has a relatively straightforward geometry or when the production environment does not support steam equipment.

Typical examples include:

• cylindrical bottles;

• cans;

• jars;

• containers with limited diameter variation;

• tamper-evident shrink bands;

• facilities without a steam supply;

• products or secondary packaging where excess moisture is undesirable.

However, airflow control becomes especially important.

If one part of a PETG sleeve receives too much heat too early, the film may shrink before it reaches the correct position. If another area receives insufficient heat, wrinkles or loose sections may remain.

For this reason, temperature alone should not be used to judge a hot air tunnel. Air direction, velocity, heating zones and conveyor speed all influence the final result.

Common PETG Shrink Sleeve Problems in Shrink Tunnels

Even when the correct tunnel type is used, problems can occur if the film and application conditions are not properly matched.

Wrinkles

Wrinkles may appear when different areas of the sleeve shrink at different speeds.

Possible causes include:

• uneven heat distribution;

• incorrect sleeve dimensions;

• excessive shrinkage in one area;

• insufficient shrinkage in another area;

• unsuitable tunnel settings.

Graphic Distortion

Full-body shrink sleeves must compensate for the amount of shrinkage that occurs in different areas of the bottle.

Without proper artwork distortion, logos, text or graphics may appear stretched after shrinking. Professional shrink sleeve production therefore often includes distortion testing before mass production.

Sleeve Movement

If the PETG sleeve begins shrinking before it is correctly positioned, graphics may move away from the intended location.

This can be influenced by the sleeve dimensions, container shape and heating sequence.

Incomplete Shrinkage

Loose sections around the neck, bottom or recessed areas usually indicate that the film has not received the appropriate heat exposure or that the film specification does not match the required shrink profile.

PETG Film Selection Matters as Much as Tunnel Selection

A common mistake is to focus entirely on the shrink tunnel.

In practice, successful shrink sleeve production depends on several elements working together:

PETG film + container shape + sleeve dimensions + artwork distortion + tunnel settings + line speed

Different PETG shrink films can have different shrink characteristics. Therefore, simply using the same tunnel settings for every film or bottle is unlikely to deliver consistent results.

Before purchasing PETG shrink sleeve film in bulk, buyers should provide the film manufacturer with information such as:

• bottle material;

• bottle dimensions;

• maximum and minimum circumference;

• container shape;

• desired sleeve coverage;

• shrink tunnel type;

• production speed;

• printing process;

• required film thickness.

This allows the shrink film supplier to recommend a more suitable film specification.

Which Tunnel Should You Choose?

Choose a steam shrink tunnel when your project involves high-shrink full-body sleeves, strong container curves or demanding appearance requirements.

Choose a hot air tunnel when you need a dry process, have relatively straightforward container shapes or want to avoid installing steam-related infrastructure.

But the final decision should ideally be made through actual shrink testing.

A PETG sleeve that performs well on one bottle and tunnel configuration may require different processing conditions on another packaging line.

Can PETG Shrink Sleeves Run Through Both Tunnel Types?

Yes. PETG shrink sleeves can be processed using either steam or appropriately designed hot air shrink tunnels.

The important issue is not simply whether PETG is compatible with the tunnel, but whether the film shrink curve and shrink characteristics match the bottle and heating process.

Before mass production, sample testing is strongly recommended.

Work With a PETG Shrink Film Manufacturer Before Mass Production

For brand owners, printers and shrink sleeve converters, choosing the right film can reduce trial-and-error during production.

As a PETG shrink film manufacturer, JFPolyFilm can support buyers with PETG shrink sleeve film for different bottle shapes, printing requirements and shrink tunnel conditions.

When requesting a PETG shrink film recommendation, send us your:

• container drawing or bottle sample;

• required film thickness;

• sleeve dimensions;

• printing method;

• steam or hot air tunnel information;

• target shrink requirement.

Our team can help evaluate the application and recommend an appropriate PETG shrink sleeve film before bulk production.

If you are developing a new shrink sleeve project or experiencing wrinkles, distortion or inconsistent shrinkage on your current packaging line, contact us with your bottle and tunnel information for film selection and sample testing.
