Transparent label film has high strength and excellent clarity. With up to 80% shrinkage on transverse direction little contraction on the machine direction can wrap every container perfectly. Clear shrink wrap is a great packing solution for many industries like beverages, cosmetics and food. Clear PETG Shrink film is 100% recyclable, more environmentally friendly than many other films.
- Super Clear
- Stable Shrink
- 100% Recyclable
- Excellent Printability
- High TD Shrinkage & No MD Shrinkage
Certification:
Applications

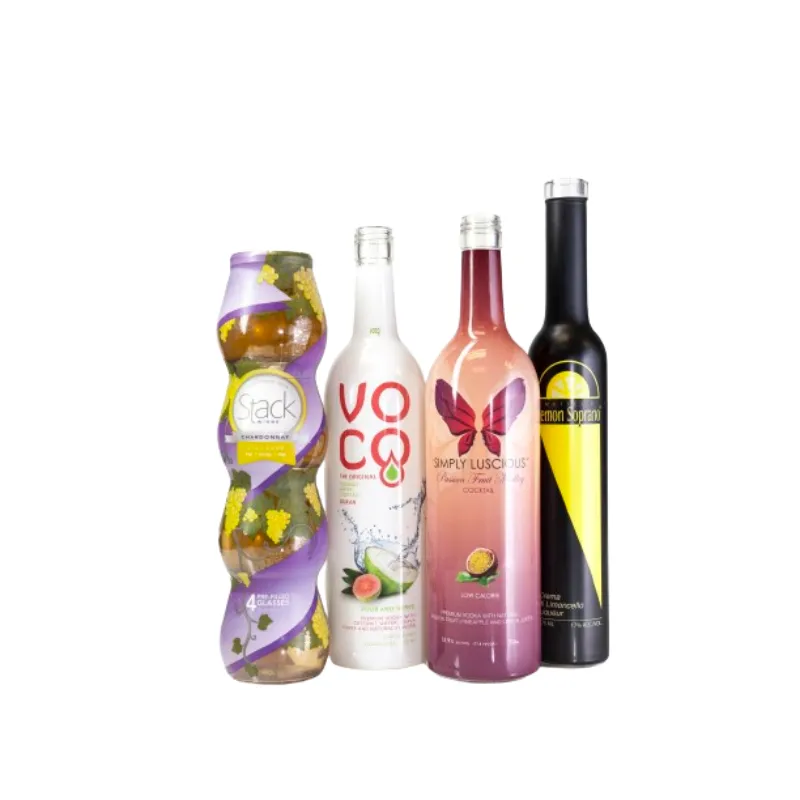

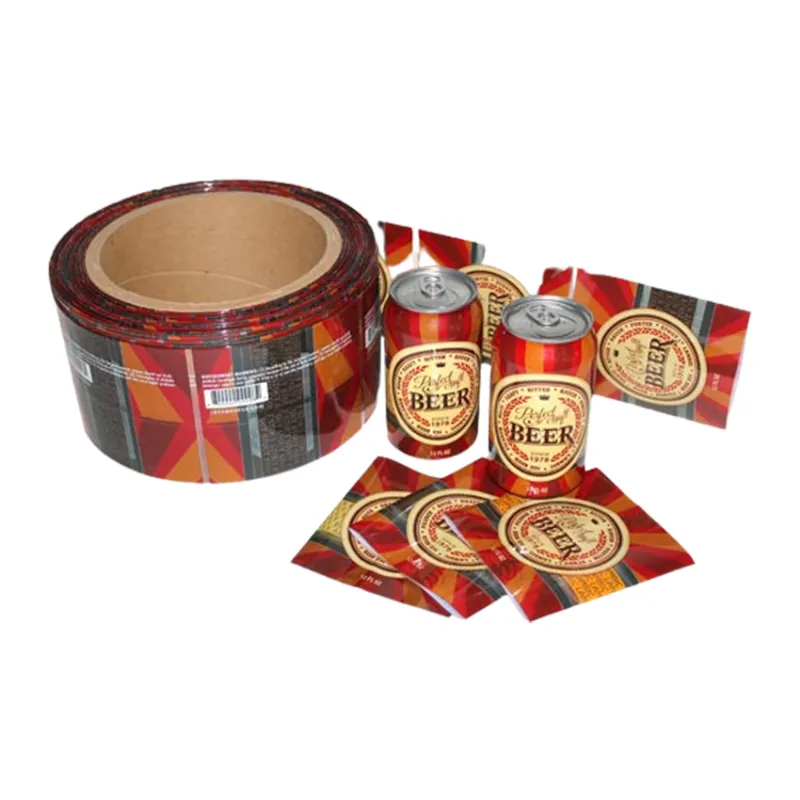

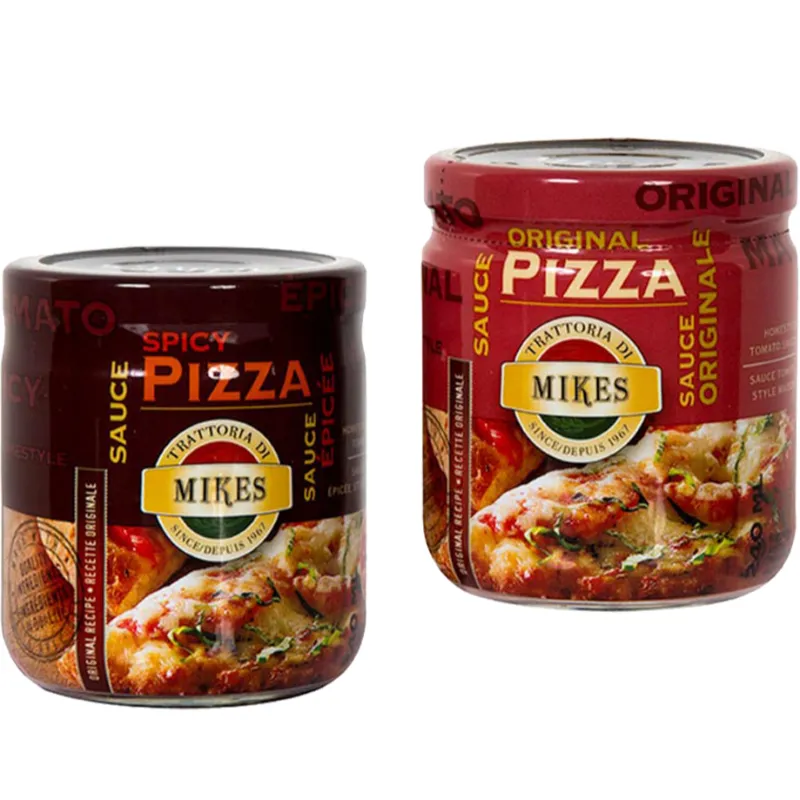

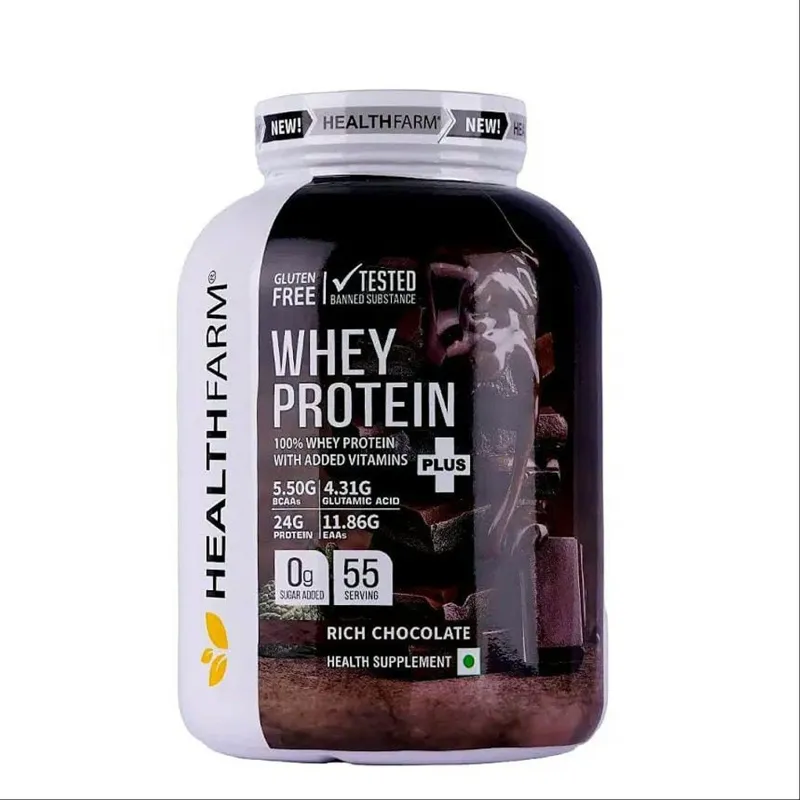

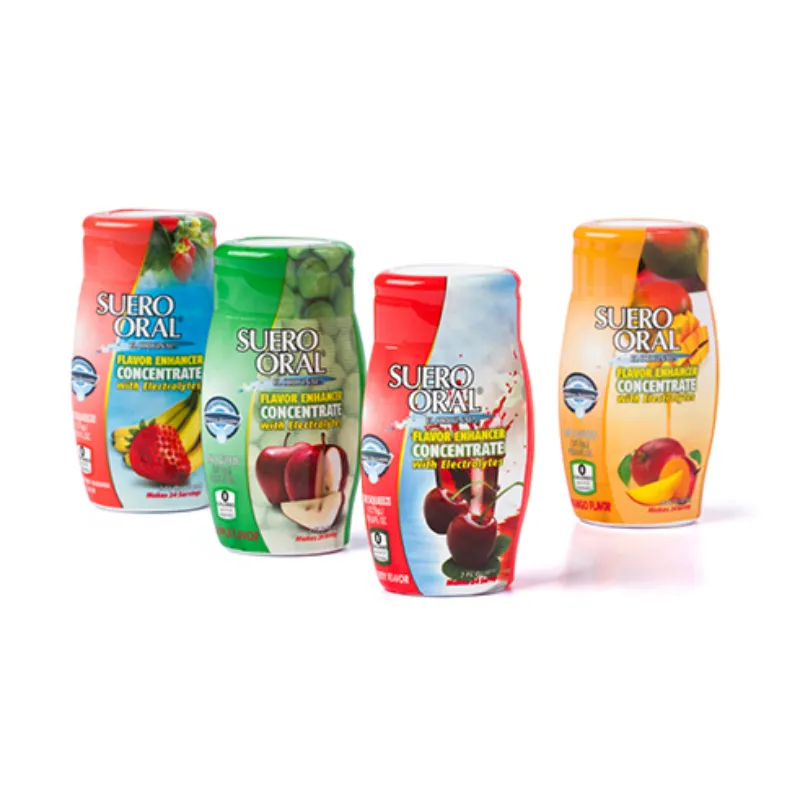

PETG Shrink Film is widely used in packaging applications such as Beverage Bottle, Food Containers, Cosmetics, Personal Care and Daily Necessities Industry, providing a durable and visually appealing solution.
Data Sheet
| Property | Unit | Value | Test Method | |||
| SH650 | SH750 | SH800 | ||||
| Thickness | μm | 40.0 | 40.0 | 40.0 | ASTM D 374 | |
| Density | g/cm³ | 1.32 | 1.32 | 1.32 | ASTM D 1505 | |
| Tensile Strength | MD | Mpa | ≥40 | ≥40 | ≥40 | ASTM D 882 |
| TD | Mpa | ≥120 | ≥120 | ≥120 | ||
| Elongation at break | MD | % | ≥250 | ≥250 | ≥250 | |
| TD | % | ≥30 | ≥30 | ≥30 | ||
| Heat Shrinkage | MD | % | ≤3.0 | ≤3.0 | ≤3.0 | 95℃ 10 Sec, Water Bath |
| TD | % | ≥65 | ≥75 | ≥80 | ||
| Friction Coefficient | μs | ≤0.60 | ≤0.60 | ≤0.60 | ASTM D 1894 | |
| μk | 0.55 | ≤0.55 | ≤0.55 | |||
| Haze | % | ≤7.0 | ≤7.0 | ≤7.0 | ASTM D 1003 | |
| Transmittance | % | ≥90 | ≥90 | ≥90 | ASTM D 1746 | |
| Gloss (45°) | % | ≥110 | ≥110 | ≥110 | ASTM D 2457 | |
| Surface Tension | mN/m | ≥38 | ≥38 | ≥38 | ASTM D 2578 | |
PETG Shrink Film Shrink Curve
Product Specification
We accept custom order.
Thickness:
20micron – 70micron
Width:
200mm – 2000mm
Length:
2000m – 6000m
Shrinkage:
TD: 60% - 80% MD: 0% - 3%
Q & A
How to print PETG shrink film?
Suitable for gravure printing, flexographic printing, UV inkjet printing.
Are JFPolyFilm’s PETG shrink films corona treated?
No corona treated, and our shrink film can be easily printed without corona treated.
What’s the glue for PETG shrink film when seaming?
The mix of 1,4-Dioxane and 1,3-Dioxolane. Feel free to contact us if more info needed.
How to shrink PETG shrink film?
Recommended for using in steam shrink tunnels. Also can be shrink by using boiling water or heat gun.
Can I ask for samples of JFPolyFilm’s PETG shrink film?
Yes, depends on your needs, A4 size, 500m length, 2000m length of free sample can be provided.
How JFPolyFilm pack PETG shrink films?
Packing Method 1:
Vertical, packing. With 3 inch (76mm) paper core (customer can choose other size). Wrap each roll with polyethylene film, and attach paper board to both side of roll. Depends on roll specification, about 20 Rolls in 1 pallet, Cover whole pallet with heat barrier.
Packing Method 2:
Horizontal packing. Usually for some of large size. With 3 inch (76mm) paper core (Customer can choose other size), Wrap each roll with polyethylene film, and attach wooden board to both side of roll. 6 rolls in 1 pallet, cover whole pallet with heat barrier.
Is PETG Shrink Film environmentally friendly?
Yes, it’s 100% recyclable, and much more environmentally friendly than PVC.
How to store PETG shrink film?
Stored in temperatures below 30℃ (86°F)
Avoid direct sunlight, rapid temperature change, moisture and dust.
