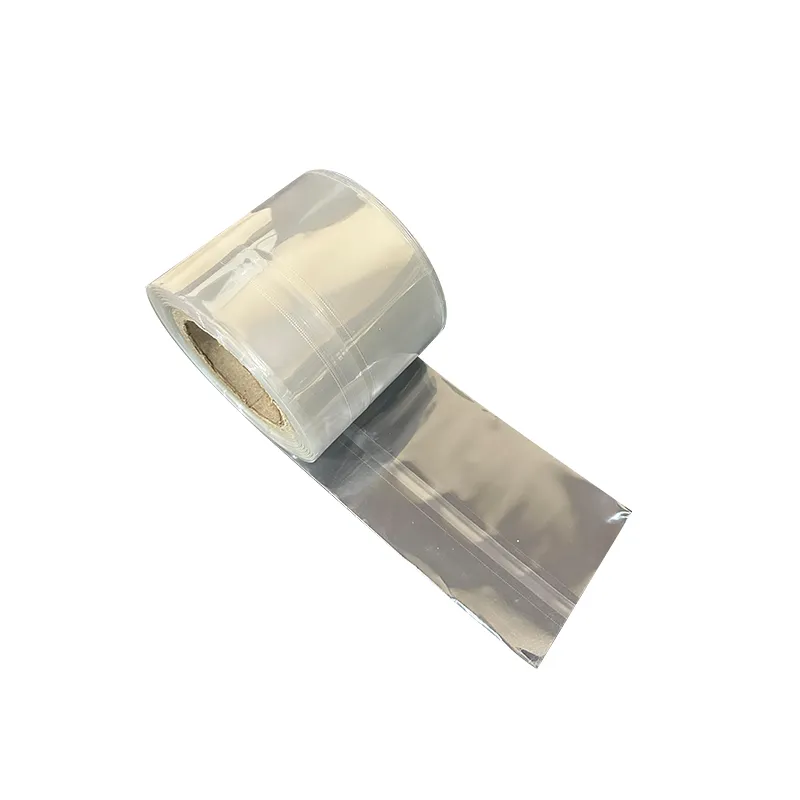

Our PETG Shrink tubing film roll are made from PETG shrink film. Super Transparent, High Strength, High Shrinkage. Compare with traditional clear shrink tubing, PETG Shrink film is 100% recyclable, more environmentally friendly than many other films. It's a great packing solution for cables, candle, bottle cap, thread, cans, wires and many other products.
- Super Clear
- Stable Shrink
- 100% Recyclable
- High TD Shrinkage & No MD Shrinkage
Certification:
Applications

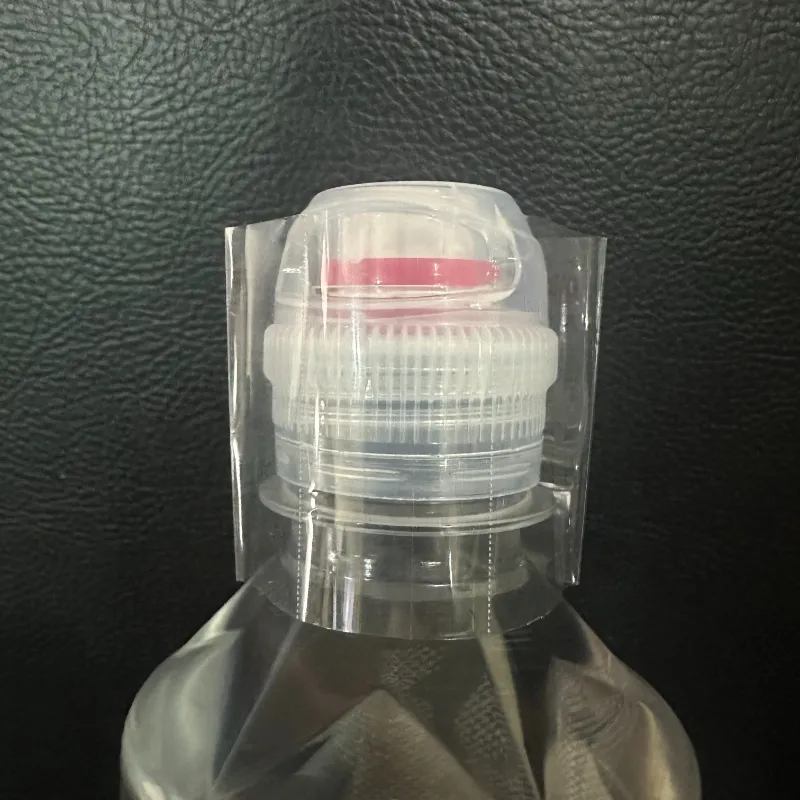

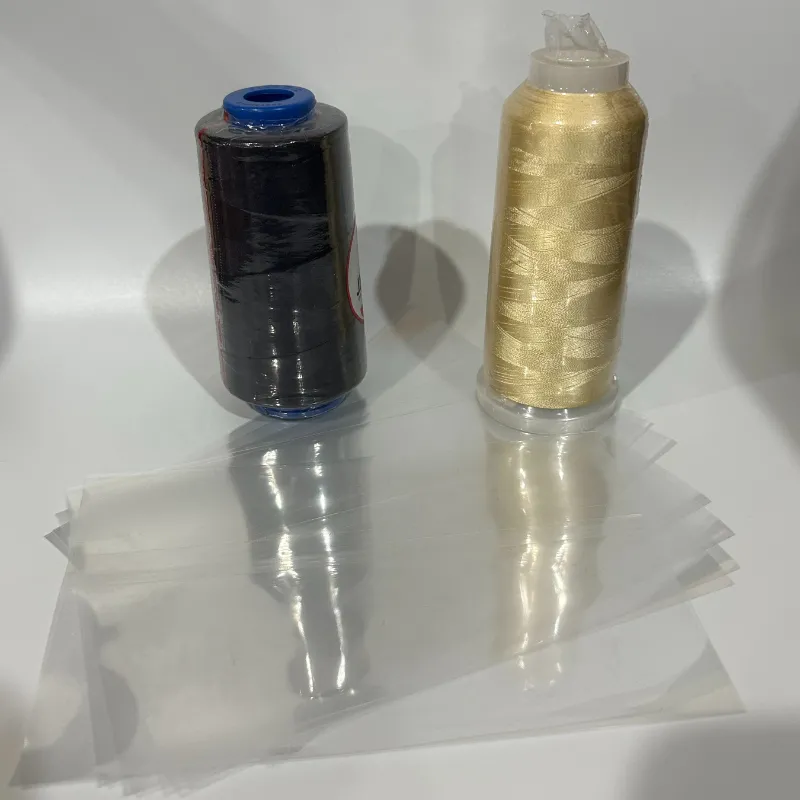

Shrink Tubing Roll is widely used in packaging cables, candle, bottle cap, thread, cans, wires and many other products. Protect the product from dust, water, and scratches. PETG shrink film is broadly compatible with gravure, flexo, and UV-offset printing. It exhibits stable shrink properties and strong ink adhesion.
Data Sheet
| Property | Unit | Value | Test Method | |||
| SH650 | SH750 | SH800 | ||||
| Thickness | μm | 40.0 | 40.0 | 40.0 | ASTM D 374 | |
| Density | g/cm³ | 1.32 | 1.32 | 1.32 | ASTM D 1505 | |

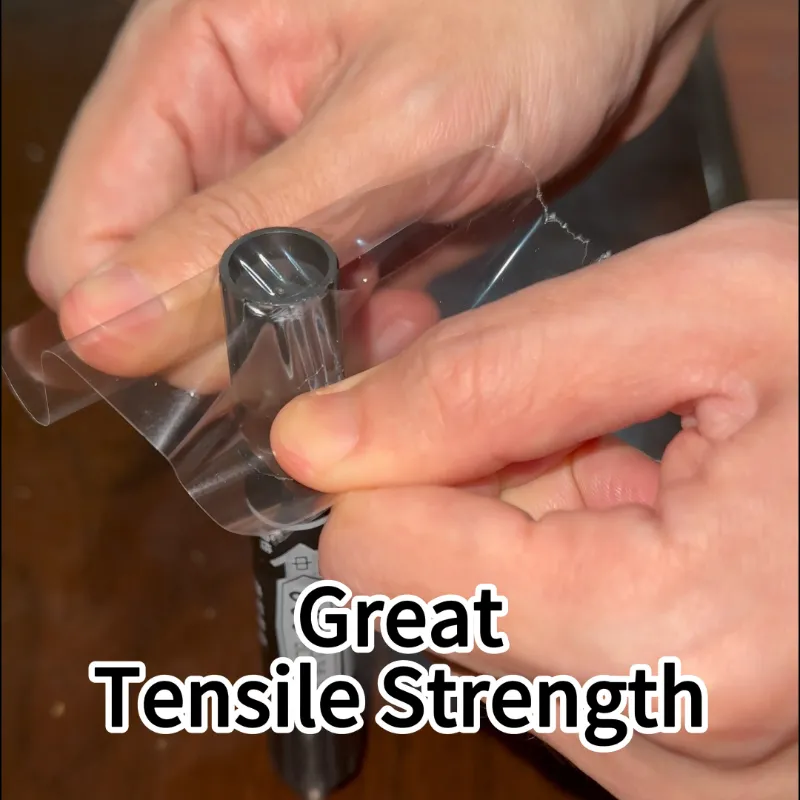

| Tensile Strength | MD | Mpa | ≥40 | ≥40 | ≥40 | ASTM D 882 |
| TD | Mpa | ≥120 | ≥120 | ≥120 | ||
| Elongation at break | MD | % | ≥250 | ≥250 | ≥250 | |
| TD | % | ≥30 | ≥30 | ≥30 | ||
| Heat Shrinkage | MD | % | ≤3.0 | ≤3.0 | ≤3.0 | 95℃ 10 Sec, Water Bath |
| TD | % | ≥65 | ≥75 | ≥80 | ||
| Friction Coefficient | μs | ≤0.60 | ≤0.60 | ≤0.60 | ASTM D 1894 | |
| μk | 0.55 | ≤0.55 | ≤0.55 | |||
| Haze | % | ≤7.0 | ≤7.0 | ≤7.0 | ASTM D 1003 | |
| Transmittance | % | ≥90 | ≥90 | ≥90 | ASTM D 1746 | |
| Gloss (45°) | % | ≥110 | ≥110 | ≥110 | ASTM D 2457 | |
| Surface Tension | mN/m | ≥38 | ≥38 | ≥38 | ASTM D 2578 | |

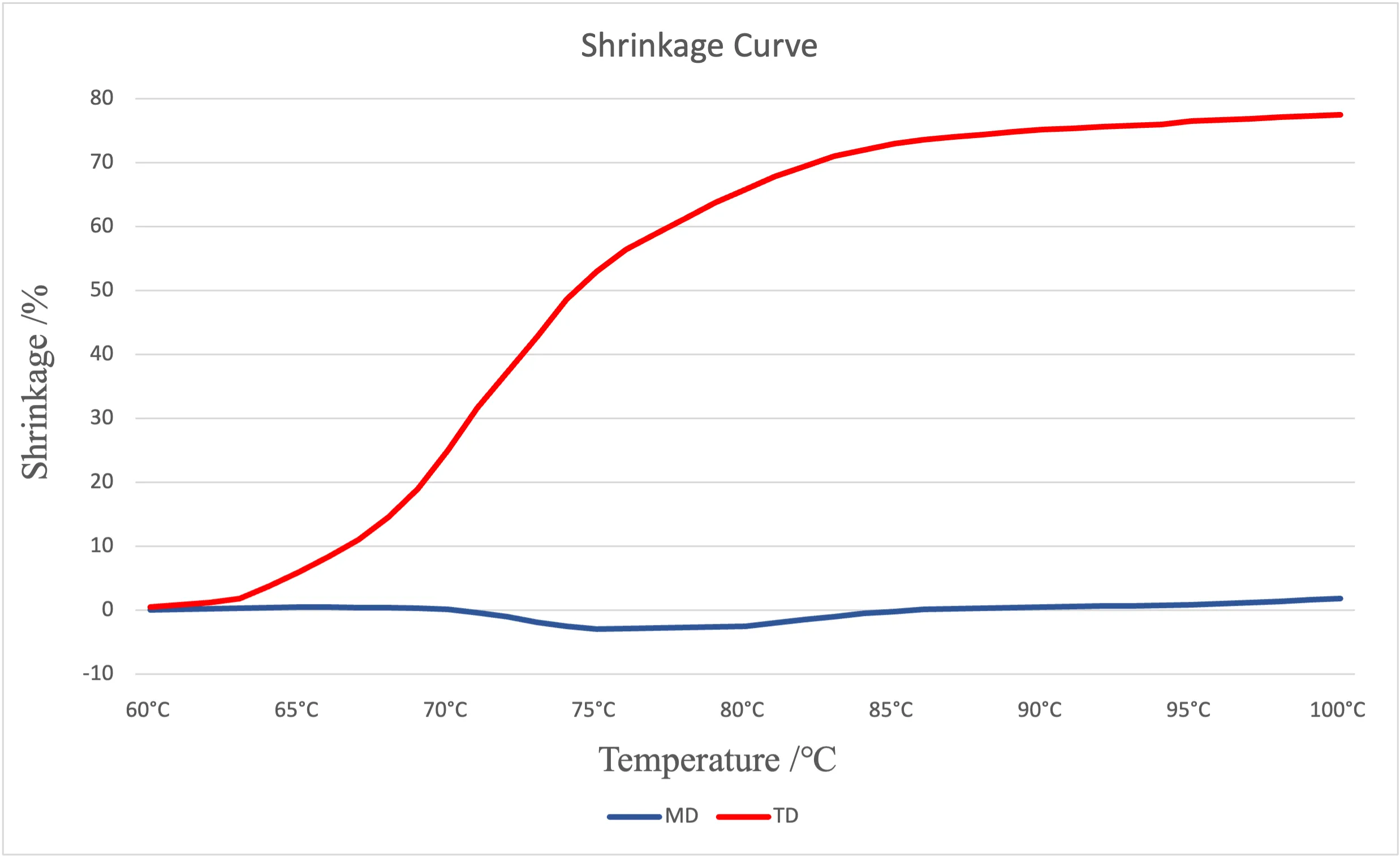

PETG Shrink Film Shrink Curve
Product Specification
We accept custom order.
Thickness:
20micron – 70micron
Width:
200mm – 500mm
Length:
5000m – 2000m
Shrinkage:
TD: 60% - 80% MD: 0% - 3%

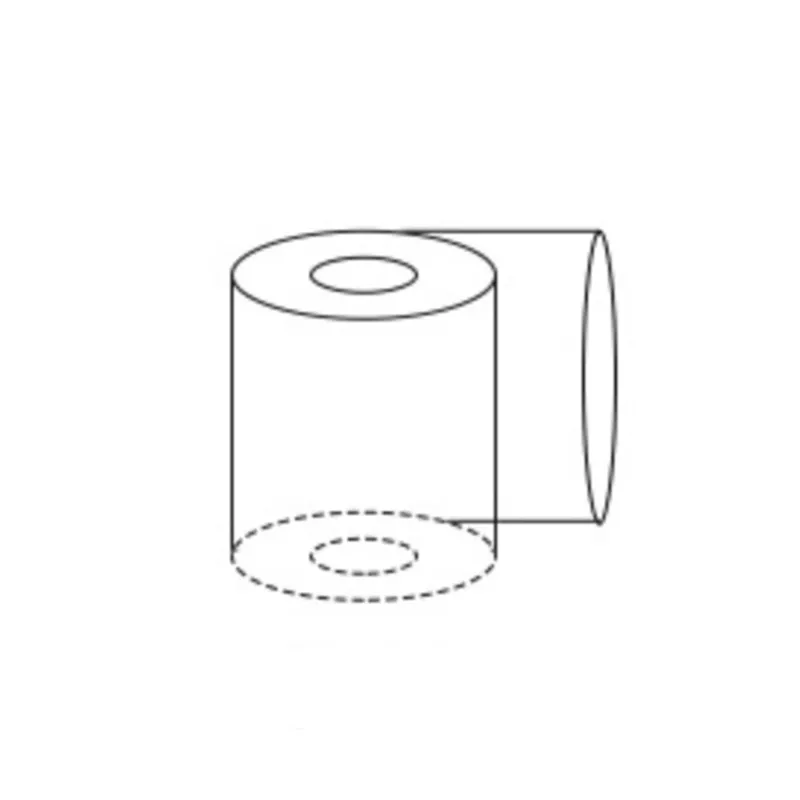

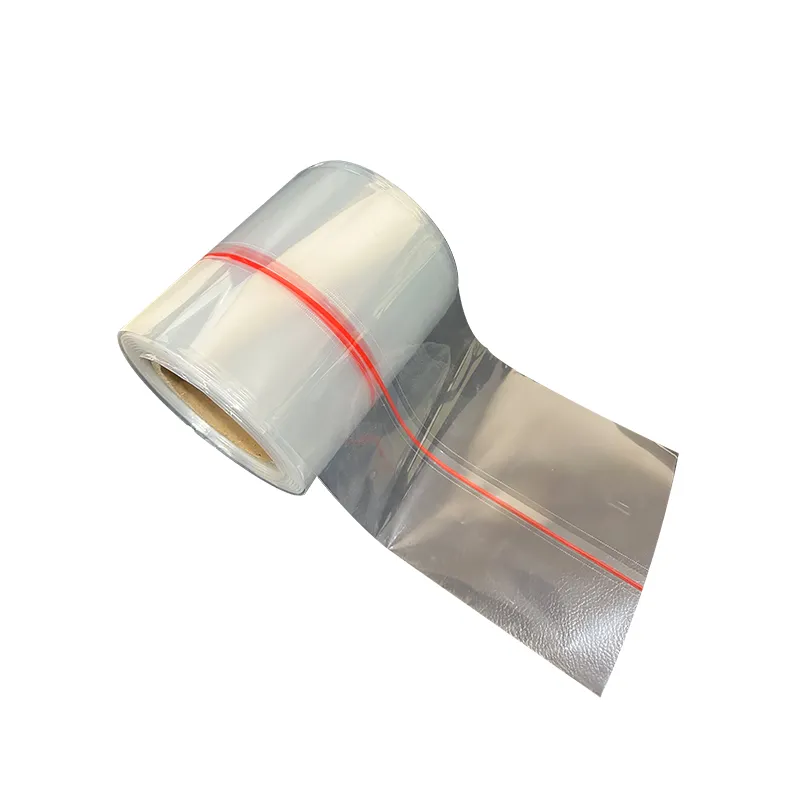

Clear PETG shrink tubing roll is a transparent heat-shrink film made from PETG (polyethylene terephthalate glycol). Our PETG shrink film roll delivers high TD shrinkage (typically 70–78%), excellent clarity, and stable shrink performance for sleeve labels, bottle packaging, cable bundling, and specialty wraps. Buyers choosing clear PETG shrink tubing roll want reliable shrink %, printable surface, and recyclability — we provide full technical specs, printing guidance, and factory support.

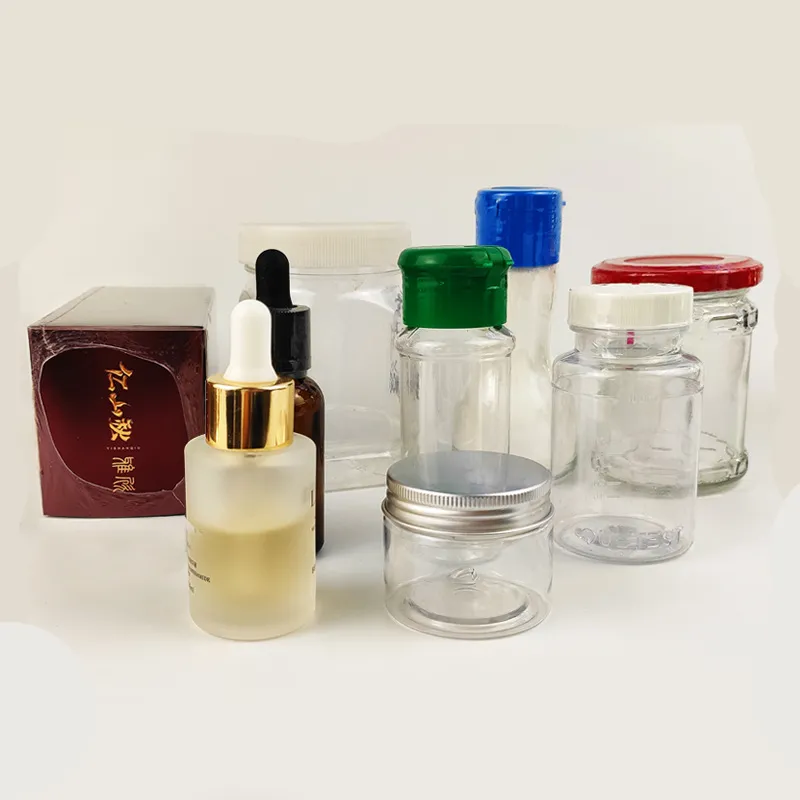

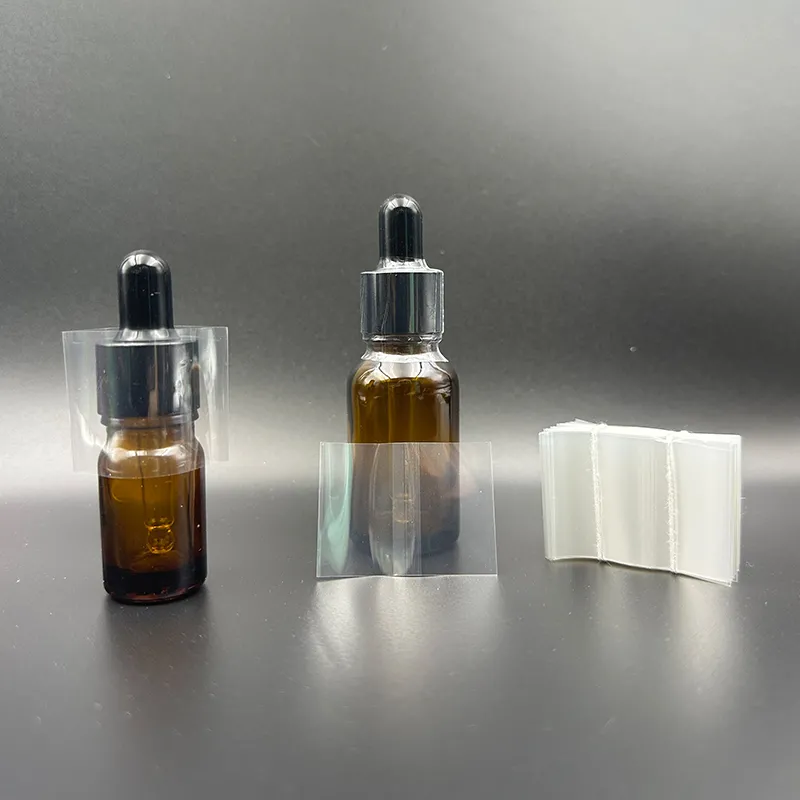

Clear PETG shrink tubing roll is designed for applications that need full-body sleeve labels and transparent wraps where product visibility matters. Typical uses include beverage bottles, jar sleeves, candle wraps, electronic cable bundles, and specialty product packaging. PETG offers a balanced combination of clarity, strength, and recyclability compared with PVC and POF films.
Clear PETG shrink film rolls are available in grades that deliver 70–78% TD shrink, which ensures a close, wrinkle-free fit on tapered containers and complex shapes. This is why beverage brands often prefer PETG for full-body sleeves.

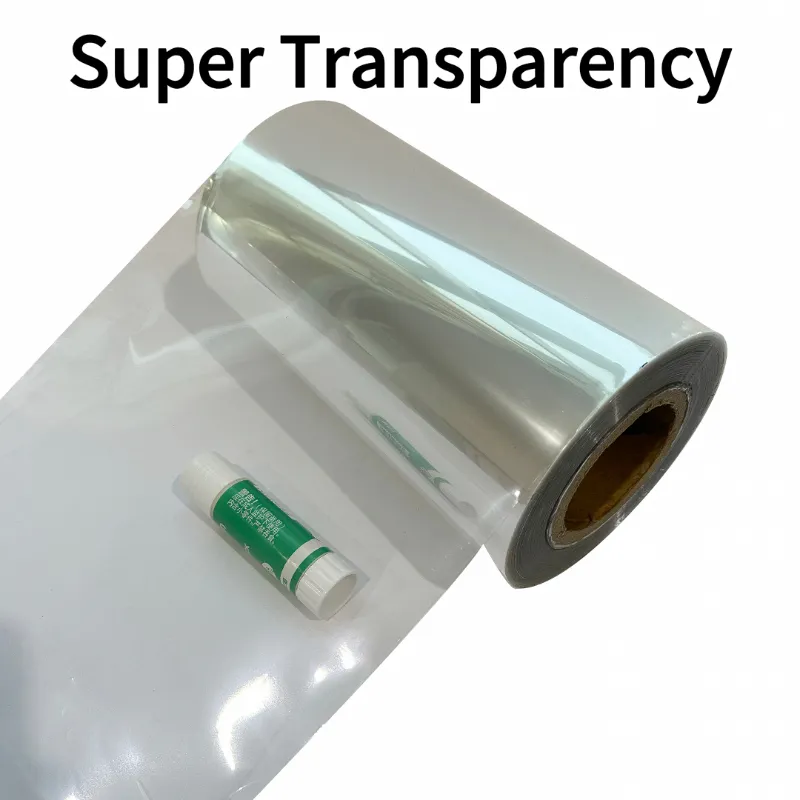

PETG delivers super clear appearance without yellowing — ideal when product visibility or premium shelf look is important. Use the phrase “clear PETG shrink film roll” in page headings and product labels to match buyer search intent.
Our PETG shrink rolls are compatible with gravure, flexo and UV printing. We recommend testing ink and varnish formulations to avoid delamination; talk to our tech team for press settings.
PETG grades are more recyclable than PVC and do not release chlorine during heat shrinking. We can provide RoHS / REACH documentation on request to support procurement compliance.
Thickness: from 20 µm up to 70 µm
Width: customizable between 200 mm and 500 mm (larger widths available on request)
Roll Length & Core: typically 5000–2000 m per roll, standard cores sized 3″ or 6″
Surface Finish: glossy or matte variants as required
Printing Compatibility: Suitable for gravure, flexo, and UV-offset printing; our PETG shrink rolls deliver excellent ink adhesion and high-definition graphics.
Our transparent PETG film is optimized for each grade during printing and converting at the printer. Press testing is performed; typical PETG grades require higher channel temperatures than PVC, but shrink more tightly. Consistent web tension is used throughout the product, and width tolerances are checked to within ±5%. Ink adhesion and heat resistance testing are performed for gravure, flexo, and UV printing. Request a free sample roll for in-line shrinkage testing before full production.
Beverage full-body sleeves (bottles that need 70–78% shrink for tapered necks).

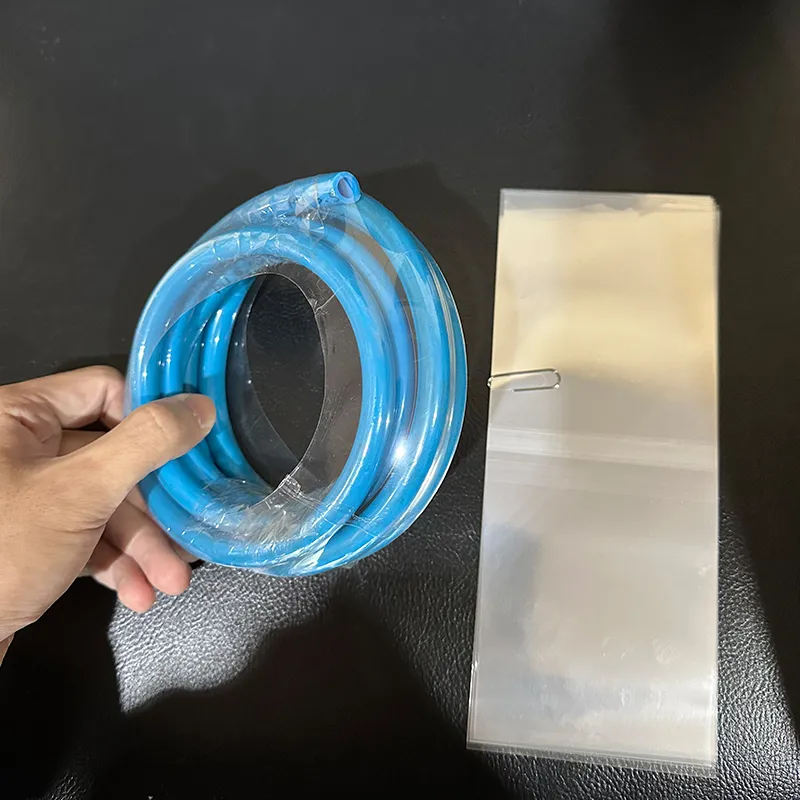

Cable & wire bundling — clear PETG tubing roll gives tidy retail presentation.

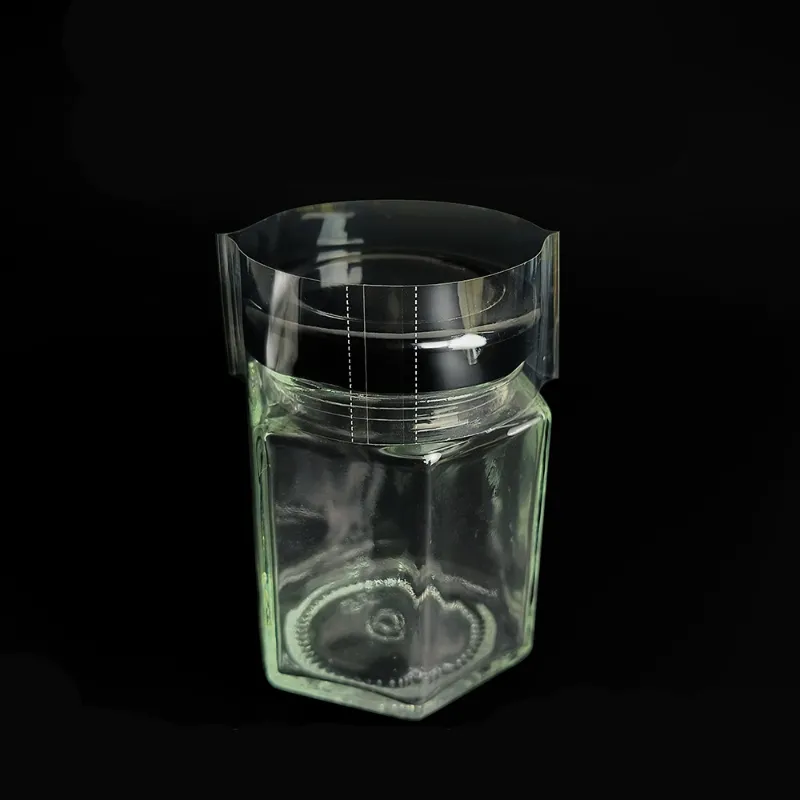

Jar and can wraps — maintain clarity and print quality for retail packaging.
Promotional and gift packaging — clear, high-gloss finish for premium look.
Offer flexibility: Start with just 1 kg for sampling or scale to 1 ton (1000 kg) for production runs.
Sample rolls: ready in ~7 business days
Bulk shipments: produced and dispatched within 15–25 working days
Q & A
How to Shrink?
Use in steam, hot air, or infrared shrink tunnel.
Can I ask for samples of clear PETG shrink tubing roll?
Yes, depends on your needs, some pieces, 20m length, 100m length of sample can be provided.
How JFPolyFilm package and deliver the films?
3" Paper Core (Customer can choose 7"), Rolling Packing, Put in Paper Box, Cover with Heat Barrier.
Is clear PETG shrink tubing roll environmentally friendly?
Yes, it’s 100% recyclable, and much more environmentally friendly than PVC.
How should clear PETG shrink tubing roll stored?
Stored in temperatures below 30℃ (86°F)
Avoid direct sunlight, moisture and dust.
